LiDAR SZT-R250

SKU: GENIE-40 Category:

● Absolute accuracy down to 5 cm
● 2.1 kg only, working range up to 250 m

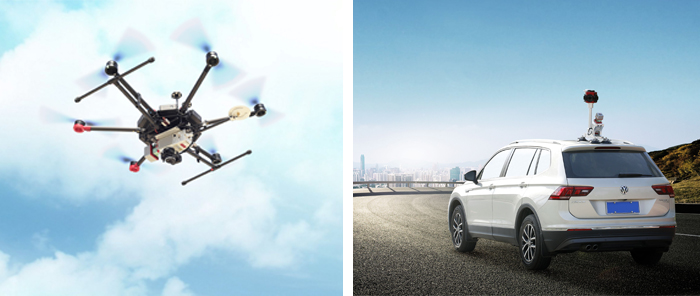

● Multi-platform (UAV/SUV/ATV) applications

Model: SZT-R250

Availability: 100000 In stock

$180,000.00

100000 in stock

Qty :
Compare

Features

15457287012782911

1

Specification

LiDAR System Laser Channels
Laser Range max. 250 m
Field of View 0°~ 360°
Angular Resolution 0.001°
Max. Means Rate up to 100,000 meas./sec
Accuracy H/V: 5 cm @50 m; H/V: 10 cm@100 m (UAV)
H/V: 3 cm (Automotive)
Camera Effective Pixels 24.3 MP RGB
Recommended scanning height AGL 10-100 m
Net Weight 2.1 kg (w/o camera)
Dimensions 297 x 85 x 111 mm
Input Voltage 11-32V DC
Power Consumption 27 W
Data Storage
Part I: Laser Scanner Type RIEGL miniVUX-1UAV
Wavelength 905 nm
Eye Safety Class laser class 1
Laser Product Classification
Laser Pulse Repetition Rate 100 kHz
Range Accuracy
Accuracy/ Precision 15 mm / 10 mm
Rotation Rate
Scan Speed 10-100 scans/sec
Multi-echo effect up to 5 echoes per shot
Data Storage SDHC/SDXC 32 GB ( 128 GB max.)
Environment Protection IP64
Temperature operating: -10° to 40°C; storage: -20° to 50°C
Part II: POS System Type SPAN IMU-IGM-S1
Gyroscopes Bias in-run Stability 0.5°per hour
Gyroscopes Measurement Range 400 deg/sec
Accelerometers Measurement Range ±10 g
Post Processing Roll/Pitch Accuracy 0.006°
Post Processing Heading Accuracy 0.019°
Post Processing Position H/V Accuracy 0.01/0.02 m
Post Processing Velocity H/V Accuracy 0.02/0.01 (m/s)
Data Sampling Rate POS: 125 Hz; Location: 5 Hz
Internal Memory 8 GB

Note: all information above is subject to change without any prior notice.
