Z-Lab LiDAR-eco

SKU: GENIE-41 Category:
    • scanner accuracy down to 2 cm optimal
    • measuring range up to 260 m maximum
    • scan rate at maximum 480,000 pts per sec

Model: Z-Lab LiDAR-eco

Availability: In stock


Qty :


Z-Lab LiDAR-eco1

Z-Lab LiDAR-eco2


Z-Lab LiDAR-eco Model Code LiDAR-eco

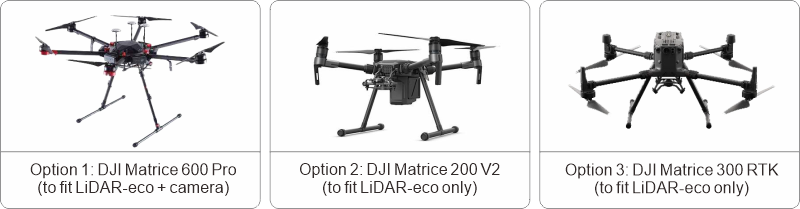

Application Mode UAV-based recommended
Field of View 81.7° (H.) × 25.1° (V.)
Net Weight (w/o camera) approx. 1.59 kg
Dimensions (LxWxH) 77 x 115 x 208 mm
Power Consumption 20-50 W
Input Voltage DC 12-30 V
Operating Temperature 0℃ up to +40℃
Storage Temperature -20℃ up to +50℃
Constellation Support GPS/Glonass/Beidou
Gyroscope Bias Stability ±3 deg/hr
Gyroscope Range ±490 deg/sec in all axis
Accelerometer Range ±16 g in all axis
Scanner Type solid state sensor
Laser Safety Class 1 (IEC 60825-1:2014)
Laser Wavelength 905 nm
Scanner Ingress Protection IP 67
Scanner Precision optimal 2 cm ①
Absolute Accuracy down to 5cm, typical 10-20 cm ②
Angular Resolution <0.05 deg (1σ)
Measuring Range max. 260 m @ 80% reflectivity
Scanning Height typical 10-200 m, best below 100 m
Number of Echoes max. 2 returns
Measurement Rate 240,000 pts per sec (single return); 480,000 pts per sec (dual return)

The specification above will be subject to change without prior notice.

Note: ① It was obtained in an environment of 25℃ with a target of 80% reflectivity 20 meters away. The result might vary under different actual conditions. ② The performance will vary depending on the flight altitude, pulse reflectivity, vegetation density, terrain feature, etc.
